Tata Punch Creta Horn OEM Installation | Plug & Play | No Warranty Void

Hello Punchians,

Today I am going to install Creta OEM Horns in Tata Punch by replacing the stock OEM Hella Horns. Let's get started. If you have Pure Or Adventure Variant which has a single horn you will need to install a relay for a dual horn.

In the Accomplished/Creative Variant there is a 20A dual relay for the horn see below pic :


Compatible (Plug & Plug) :

  1. Hella Midnight Black 12v, 410/490Hz Rs.663 Product Link: Click Here Sound Sample: Click Here
  2. Hella Chrome Trumpet Horn Set ( 12V,400/500 Hz,105 -118 dB @ 2m) Rs.1,480 Product Link: Click Here Sound Sample: Click Here
  3. Bosch Scarlet Horns-Set of 2 (12V, 420/500 Hz, 105-118 dB) Rs.1044 Product Link: Click Here Sound Sample: Click Here
  4. Roots Windtone 90 Red Trumpet Horn Rs.1,085 Product Link: Click Here

Installation Video :




Parts :

Low Tone INFAC Horn: Product Link: Click Here

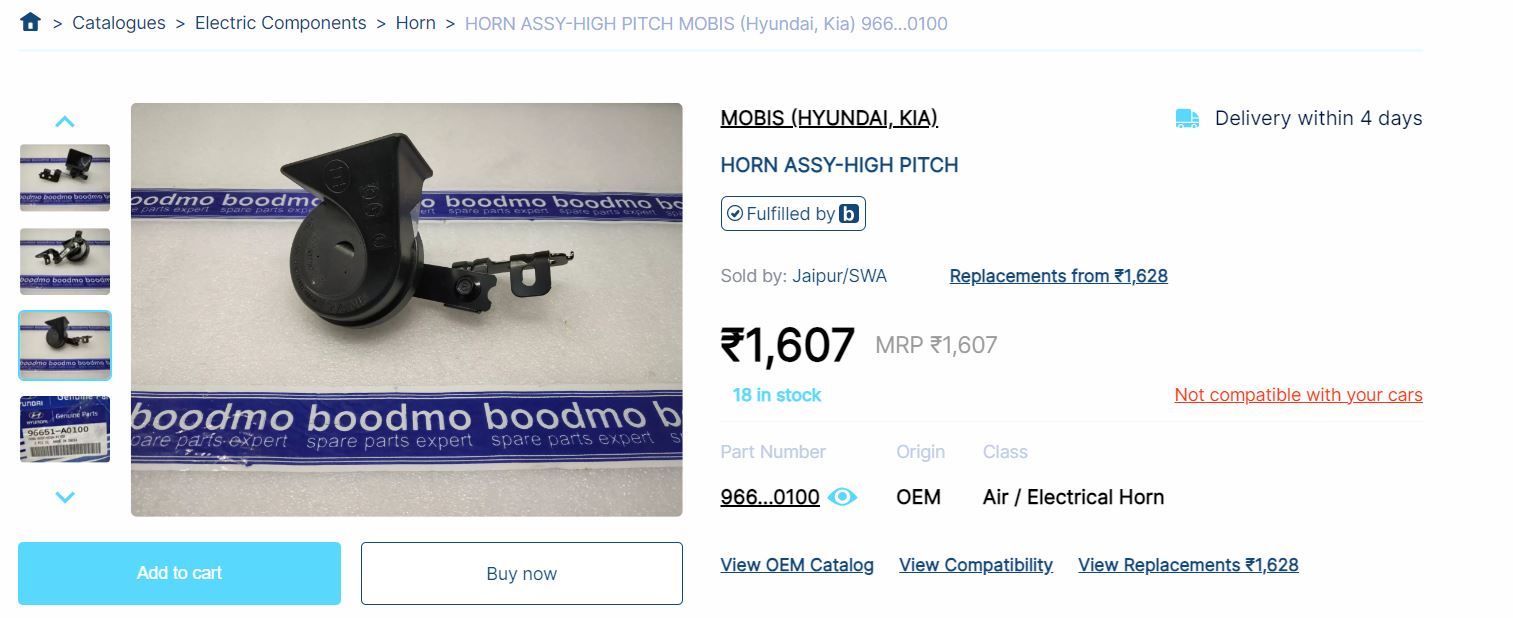

High Tone INFAC Horn: Product Link: Click Here




Creta Horn OEM INFAC Connectors :

Kar DIY

Male Thimble Connector With Insulation Caps :
Shrink Tubes :


Parts List :

  1. Creta OEM High Tone Horn
  2. Creta OEM Low Tone Horn
  3. Dual Horn Relay
  4. Creta Horn Connectors (WhatsApp Vineet)
  5. Heat Shrink Tubes.
Installation :
  1. Remove the front bumper and then locate your High Tone and Low Tone Horns placements.
  2. The high tone horn is located beside the tri arrow cut-outs above the radiator.
  3. Low tone horn is located on the left bottom side of the fog lamps.
  4. Unplug the horn connections then remove the stock OEM horns one by one and replace them with creta horn HT Horn and connect the Creta connectors to it honk it test it on the spot if any issues rectify it. Similarly do it for the Low tone horn.
